OPEK OP-PS3001D 12V 30AMP DC Power Supply Variable Output

OPEK OP-PS3001D  12V 30 AMP  DC Power Supply

Variable output  4.5 to 16 VDC

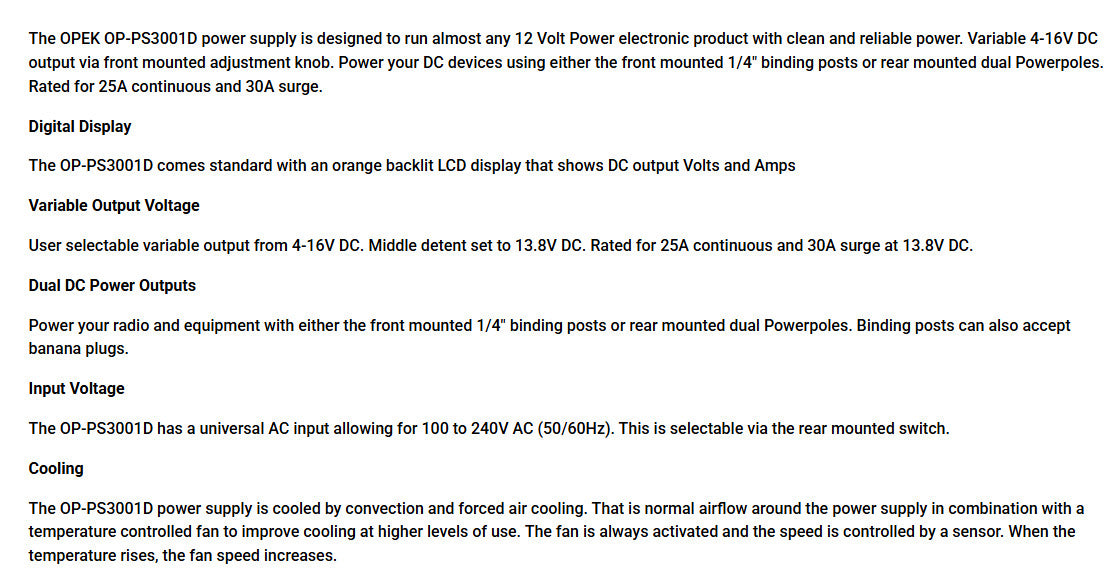

The OPEK OP-PS3001D power supply is designed to run almost any 12 Volt Power electronic product with clean and reliable power. Variable 4-16V DC output via front mounted adjustment knob. Power your DC devices using either the front mounted 1/4″ binding posts or rear mounted dual Powerpoles. Rated for 25A continuous and 30A surge.

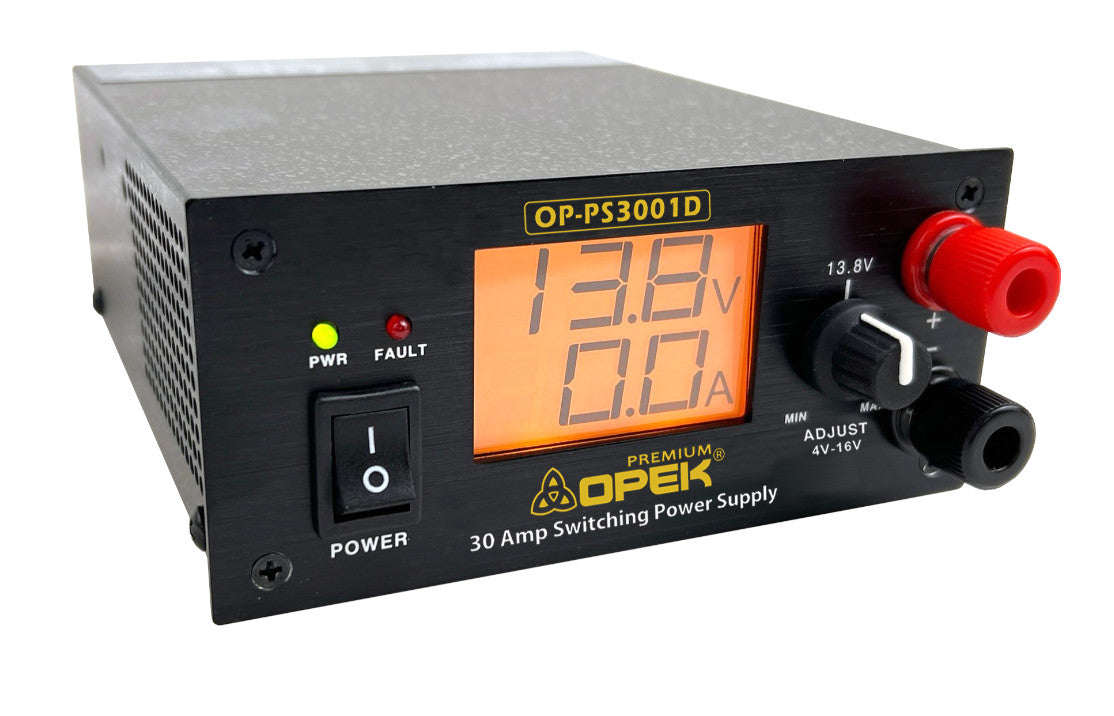

Digital Display

The OP-PS3001D comes standard with an orange backlit LCD display that shows DC output Volts and Amps

Variable Output Voltage

User selectable variable output from 4-16V DC. Middle detent set to 13.8V DC. Rated for 25A continuous and 30A surge at 13.8V DC.

Dual DC Power Outputs

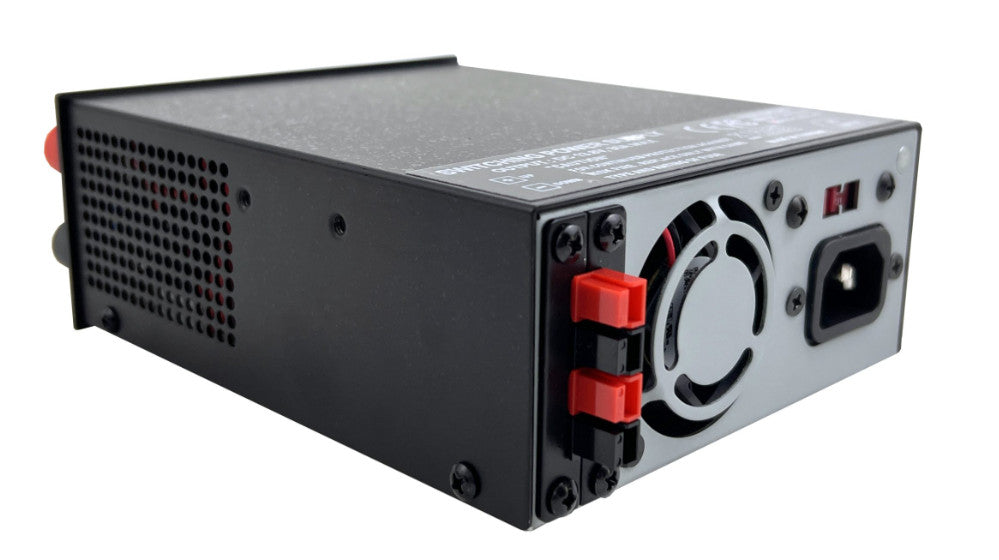

Power your radio and equipment with either the front mounted 1/4″ binding posts or rear mounted dual Powerpoles. Binding posts can also accept banana plugs.

Input Voltage

The OP-PS3001D has a universal AC input allowing for 100 to 240V AC (50/60Hz). This is selectable via the rear mounted switch.

Cooling

The OP-PS3001D power supply is cooled by convection and forced air cooling. That is normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use. The fan is always activated and the speed is controlled by a sensor. When the temperature rises, the fan speed increases.
