Key Takeaways
• CB coax cable is the critical link between your radio and antenna – poor coax can ruin even the best CB setup
• RG-58, RG-8X, and RG-213 are the most common types, each with specific advantages for different applications
• Proper connectors (PL-259, Mini-8) and weatherproofing are essential for reliable performance
• Cable length affects SWR readings – use the shortest run possible while avoiding specific "bad" lengths
• Quality coax with proper shielding prevents signal loss and interference issues
Explore our complete CB Coax Cable Collection at Alberta Radio Supply
Introduction: Why CB Coax Cable Matters More Than You Think
When setting up a CB radio system, enthusiasts often focus on choosing the perfect radio and antenna while overlooking the humble coaxial cable connecting them. This oversight can be costly – even the most expensive CB radio paired with a top-tier antenna will perform poorly if connected with substandard coax cable.
Think of CB coax as the highway for your radio signals. Just as a congested or damaged road slows traffic, poor-quality coax creates resistance, signal loss, and interference that can reduce your communication range from miles to mere blocks. Understanding CB coax specifications, types, and proper installation techniques ensures your CB system performs at its peak potential.
Understanding CB Coaxial Cable Basics
What Is CB Coax Cable?
Coaxial cable, commonly called "coax," consists of four main components working together to carry radio frequency (RF) signals:
-
Center Conductor: The copper or copper-clad steel wire that carries the signal
-
Dielectric Insulator: The material surrounding the center conductor, maintaining consistent spacing
-
Shield: Braided wire or foil that prevents interference and signal leakage
-
Outer Jacket: Protective covering that shields internal components from damage
This construction creates a controlled environment for RF signals, maintaining the 50-ohm impedance that CB radios require for optimal performance.
How CB Coax Works in Your System
According to cbradiosupply.com, coaxial cable serves as a transmission line that carries radio frequency energy between your CB radio and antenna. The cable must maintain consistent electrical properties throughout its length to minimize signal reflection and loss. When properly installed, quality coax ensures that maximum power reaches your antenna for transmission and that received signals arrive at your radio with minimal degradation.
Types of CB Coax Cable
RG-58: The Standard Choice
RG-58 remains the most popular CB coax cable for good reason. With an outer diameter of approximately 0.195 inches, it offers:
• Affordable pricing for budget-conscious installations
• Adequate performance for runs under 20 feet
• Easy routing through tight spaces in vehicles
• Acceptable signal loss for typical CB applications
However, RG-58 experiences higher signal loss than larger cables, making it less suitable for long runs or demanding installations.
RG-8X: The Versatile Upgrade
RG-8X (also called Mini-8) provides a sweet spot between size and performance. rightchannelradios.com notes that this cable type offers:
• Lower signal loss than RG-58 (approximately 30% less)
• Manageable size at 0.242 inches diameter
• Better shielding for reduced interference
• Flexible construction for easier installation
This makes RG-8X ideal for mobile installations where performance matters but space remains limited.
RG-213: The Performance Leader
For base station installations or situations demanding maximum performance, RG-213 delivers:
• Minimal signal loss even over long runs
• Superior shielding with 95%+ coverage
• Heavy-duty construction for outdoor use
• Larger diameter (0.405 inches) requiring more installation space
The trade-off comes in reduced flexibility and higher cost, but serious CB operators consider these worthwhile investments.
Specialty CB Coax Options
Low-Loss Cable: Premium cables like LMR-240 or Times Microwave LMR series offer even better performance than RG-213, with costs to match.
Fire-Retardant Cable: Required for some commercial installations, these cables meet specific safety codes while maintaining RF performance.
Direct-Bury Cable: Features additional protection for underground runs between buildings and antenna towers.
CB Coax Connectors and Terminations

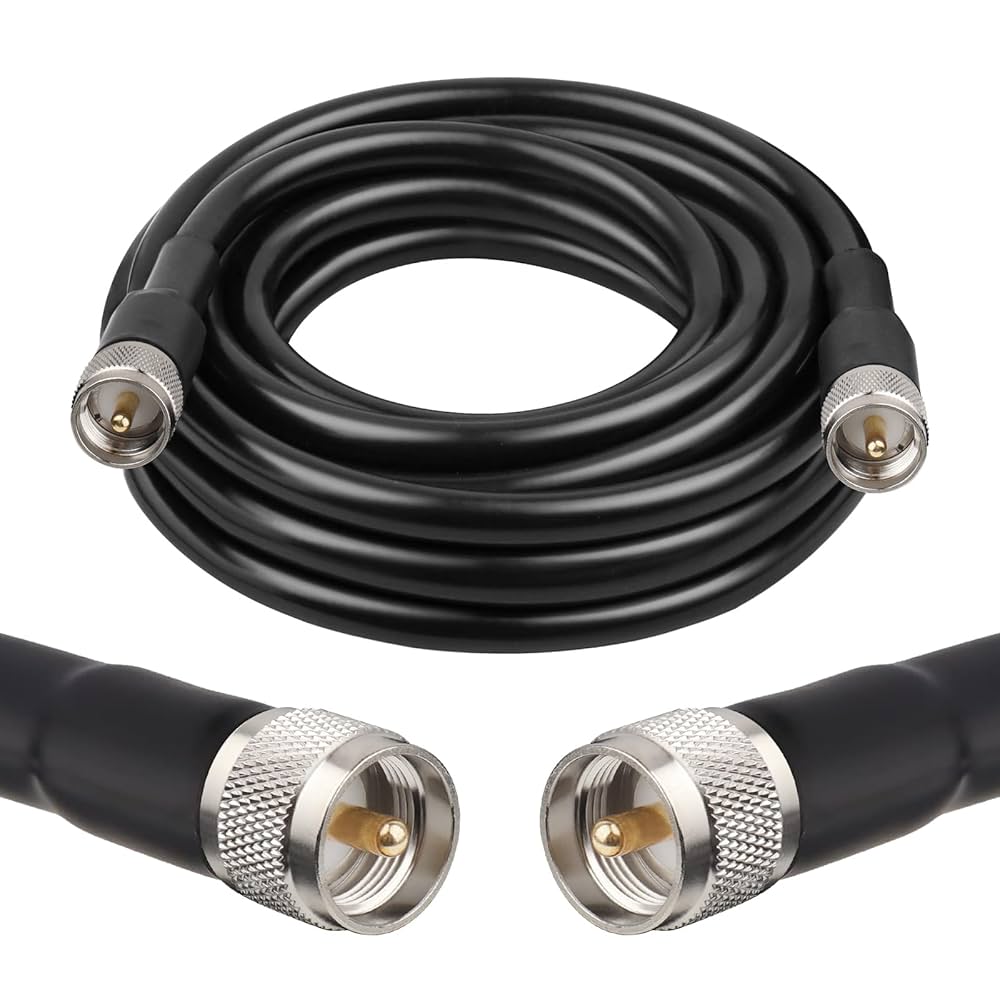

PL-259 (UHF) Connectors: The CB Standard
The PL-259 connector dominates CB installations due to its:
• Widespread compatibility with CB radios and antennas
• Robust construction that handles weather and vibration
• Relatively easy installation with proper tools
• Reliable connection when properly installed
strykerradios.com emphasizes that quality PL-259 connectors with silver-plated centers and Teflon insulators provide the best long-term reliability.
Alternative Connection Types
Mini-UHF Connectors: Smaller versions of PL-259 for tight spaces
Ring Terminal Connections: As highlighted by rightchannelradios.com, these connect directly to antenna studs, popular for mirror-mount antennas
Lug Terminals: Simple connections for basic antenna setups
FME Connectors: Compact connectors for removable antennas
Proper Connector Installation
Installing connectors correctly prevents signal loss and weather damage:
-
Strip cable carefully using proper coax stripping tools
-
Avoid nicking the center conductor or braid
-
Solder connections for maximum reliability (when possible)
-
Use quality adapters sparingly – each connection adds potential signal loss
-
Weatherproof outdoor connections with self-amalgamating tape or heat-shrink tubing
Selecting the Right CB Coax for Your Application
Mobile Installations (Vehicles)
For cars, trucks, and RVs, consider:
• Cable length: Measure carefully and add 10% for routing flexibility
• Connector types: Ensure compatibility with your radio and antenna
• Routing challenges: Smaller cables fit through tighter spaces
• Vibration resistance: Quality connectors prevent loosening
Most mobile installations work well with 18-foot lengths of RG-58 or RG-8X, though myradiolab.com recommends upgrading to RG-8X for runs over 12 feet.
Base Station Setups
Home and office installations benefit from:
• Lower-loss cable: RG-213 or LMR-240 for long runs
• Proper grounding: Follow electrical codes for lightning protection
• Weatherproofing: Protect all outdoor connections
• Professional-grade connectors: Invest in quality for permanent installations
Marine Applications
Boat installations require special consideration:
• Marine-grade cable: Tinned copper resists corrosion
• Flexible options: Accommodate boat movement
• Watertight connections: Essential for reliability
• UV-resistant jackets: Prevent sun damage
CB Coax Cable Quality Indicators
Shielding Percentage and Type
Quality CB coax features:
• 95%+ shield coverage: Prevents interference and signal leakage
• Dual shielding: Foil plus braid offers superior protection
• Tinned copper braid: Resists corrosion better than bare copper
Center Conductor Material
• Solid copper: Best conductivity and durability
• Copper-clad steel: Good performance with added strength
• Silver-plated copper: Premium option for maximum conductivity
Dielectric Quality
The insulating material affects:
• Signal velocity: How fast signals travel through the cable
• Power handling: Maximum wattage without damage
• Flexibility: Foam dielectrics offer easier handling
• Weather resistance: Solid dielectrics better for outdoor use
Installation Best Practices
Planning Your Cable Run
Before installation:
-
Measure twice: Account for all bends and connections
-
Avoid interference sources: Keep away from ignition wires, alternators, and electronics
-
Plan weatherproofing: Identify all outdoor connection points
-
Consider future access: Route cables where you can inspect them
Proper Routing Techniques
rightchannelradios.com notes several critical routing considerations:
• Avoid sharp bends: Maintain a minimum 2-inch radius
• Prevent crushing: Use grommets when passing through panels
• Secure properly: Support cable every 2-3 feet to prevent strain
• Keep dry: Route away from water accumulation areas
Testing and Troubleshooting
After installation:
-
Check continuity: Ensure no breaks in conductors
-
Test SWR: Verify proper impedance matching
-
Inspect connections: Look for loose or corroded terminals
-
Monitor performance: Note any changes in range or clarity
Common CB Coax Problems and Solutions
High SWR Readings
Causes and solutions:
• Bad connections: Re-terminate connectors properly
• Wrong cable length: Certain lengths create standing waves
• Damaged cable: Replace kinked or crushed sections
• Water intrusion: Dry and re-weatherproof connections
Signal Loss and Weak Performance
Address these issues:
• Old cable: Coax degrades over time – consider replacement
• Too many adapters: Minimize connection points
• Incorrect impedance: Ensure 50-ohm cable throughout
• Poor quality cable: Upgrade to better coax
Interference and Noise
promaxpogopin.com emphasizes that proper shielding prevents most interference:
• Inadequate shielding: Upgrade to 95%+ coverage
• Ground loops: Ensure single-point grounding
• Damaged shield: Replace compromised sections
• Poor routing: Re-route away from noise sources
Maintaining Your CB Coax System
Regular Inspections
Schedule periodic checks:
• Monthly: Visual inspection of accessible connections
• Quarterly: SWR testing and performance verification
• Annually: Complete system inspection including hidden cables
• After severe weather: Check all outdoor components
Preventive Maintenance
Extend coax life with:
• Connector cleaning: Remove corrosion with contact cleaner
• Weatherproofing renewal: Replace degraded tape or sealants
• Strain relief: Ensure cables aren't stressed by movement
• Documentation: Keep records of installation dates and test results
CB Coax Length Considerations
The "Right" Length Myth
Many CB operators believe certain cable lengths work better than others. While coax length can affect SWR readings, the best approach is:
• Use the shortest practical length to minimize loss
• Avoid specific problematic lengths (like 1/2 wavelength multiples)
• Focus on quality over magical lengths
• Test don't guess – use an SWR meter
Velocity Factor and Electrical Length
CB coax has a velocity factor (typically 0.66 for standard coax) that affects electrical length:
• Physical length × Velocity factor = Electrical length
• This matters for phasing harnesses and co-phase setups
• Single antenna installations are less critical about exact lengths
Frequently Asked Questions
What's the best CB coax cable for mobile installations?
For most vehicle installations, RG-8X (Mini-8) provides the best balance of performance, size, and cost. It offers lower loss than RG-58 while remaining flexible enough for easy routing. For runs under 10 feet, RG-58 remains acceptable.
How often should I replace CB coax cable?
Quality coax can last 5-10 years in mobile applications and even longer in protected base station installations. Replace immediately if you notice physical damage, water intrusion, or significant performance degradation.
Can I splice CB coax cable?
While possible, splicing introduces signal loss and potential failure points. It's better to replace the entire run with a continuous piece. If splicing is unavoidable, use quality barrel connectors and weatherproof thoroughly.
Does expensive CB coax really make a difference?
Yes, within reason. Quality coax with better shielding, lower loss specifications, and superior construction provides noticeable improvements in range and clarity. However, diminishing returns apply – LMR-400 won't help much in a 6-foot mobile installation.
How do I test if my coax is bad?
Use an SWR meter to check readings across all channels. High or inconsistent SWR often indicates coax problems. Also perform continuity tests with a multimeter and visually inspect for damage.
What causes CB coax to go bad?
Common causes include water intrusion, UV damage to outer jackets, physical damage from crushing or sharp bends, corrosion at connections, and age-related breakdown of the dielectric material.
Conclusion: Investing in Quality CB Coax Pays Dividends
Your CB coax cable serves as the vital link between radio and antenna, directly impacting system performance. While it's tempting to economize on what seems like "just wire," quality coax pays for itself through improved range, clearer communications, and years of reliable service.
Whether you're installing a mobile CB in your truck or setting up a base station, choosing the right coax type, installing it properly, and maintaining it well ensures optimal performance. Remember that even small improvements in coax quality can yield noticeable results in your CB radio's effectiveness.
